Barbara Tversky (Minds in Motion) discusses the cognitive power of cartoons to explain abstract concepts. In these three images, I have used cartoons to sequence events. There is a direct correspondence between the cartoon and the graph(s) below it.

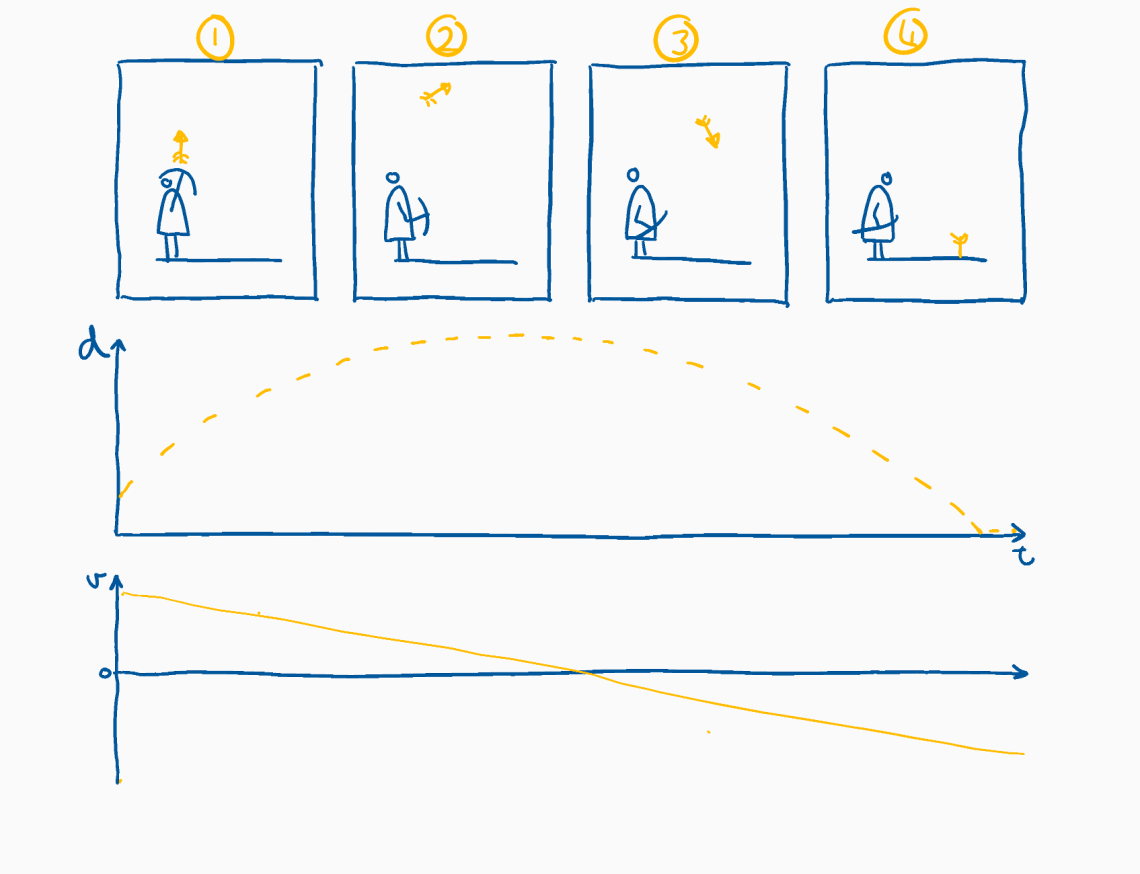

Distance-Time Graph and Velocity Time Graph for a projectile.

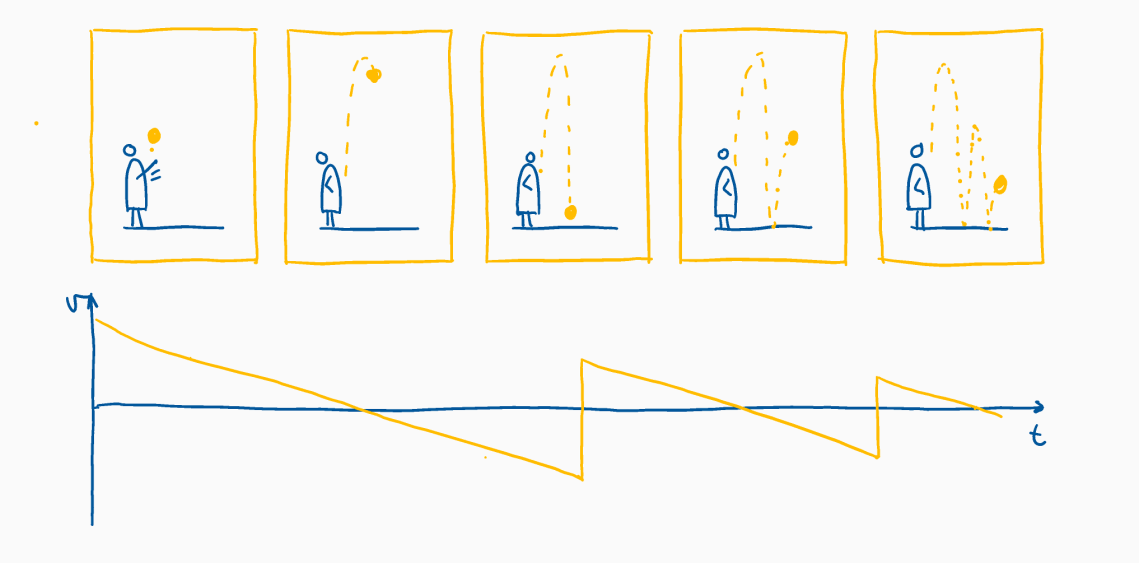

Velocity-Time graph of a bouncing ball

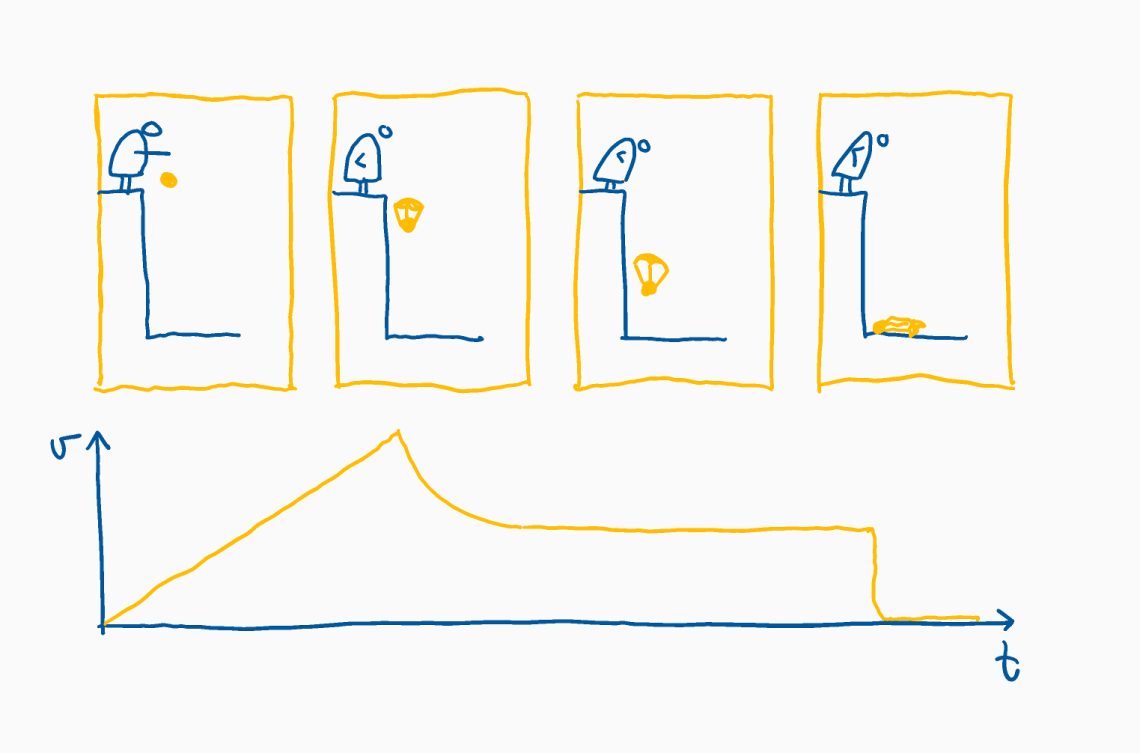

Parachute Terminal Velocity Graph
These cartoon/graph pairings allow the reader to jump up and down the ladder of abstraction (see here).
