How To Draw Like a Physicist

Physicists are often mocked for their drawing skills – they are misunderstood. You too can draw like a physicist using these simple techniques!

Last week I published a post on the problem solving power of a good physics diagram (here). In various twitter conversations that followed, we discussed the need of teaching learners how to sketch like a physicist. This is my first attempt at a “how to”.

Thanks to everyone on twitter who engaged with the post.

Ben

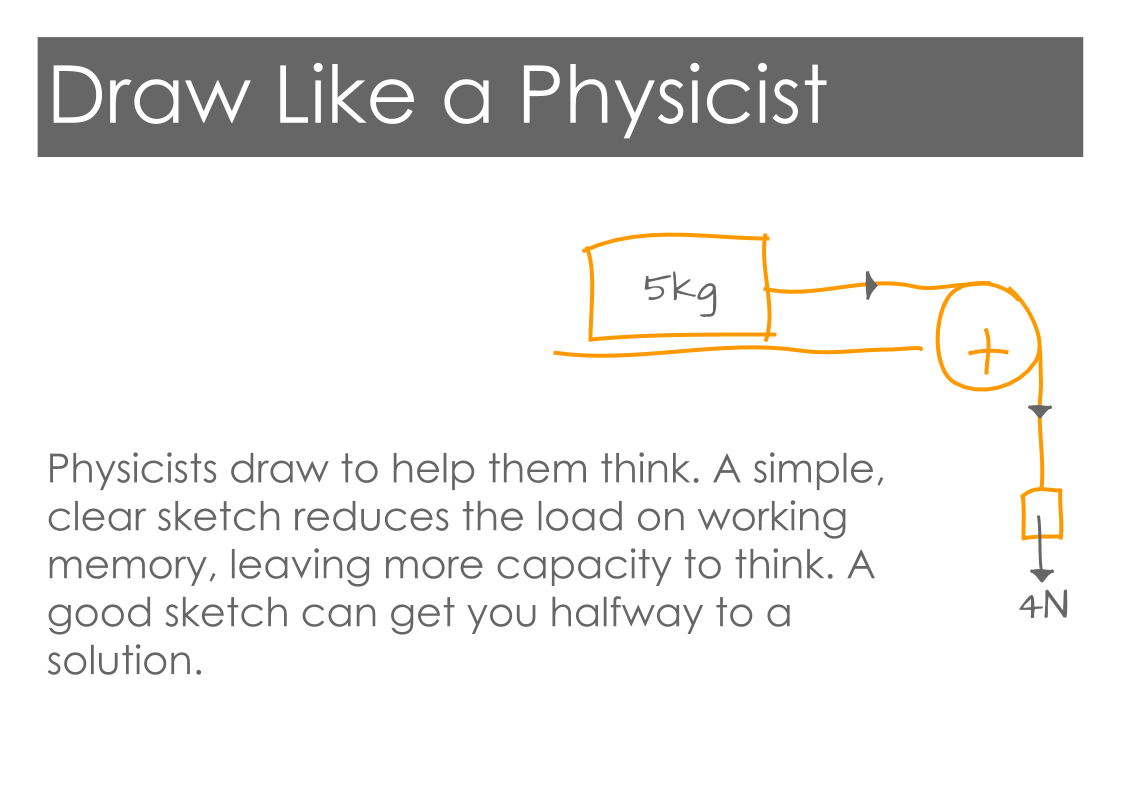

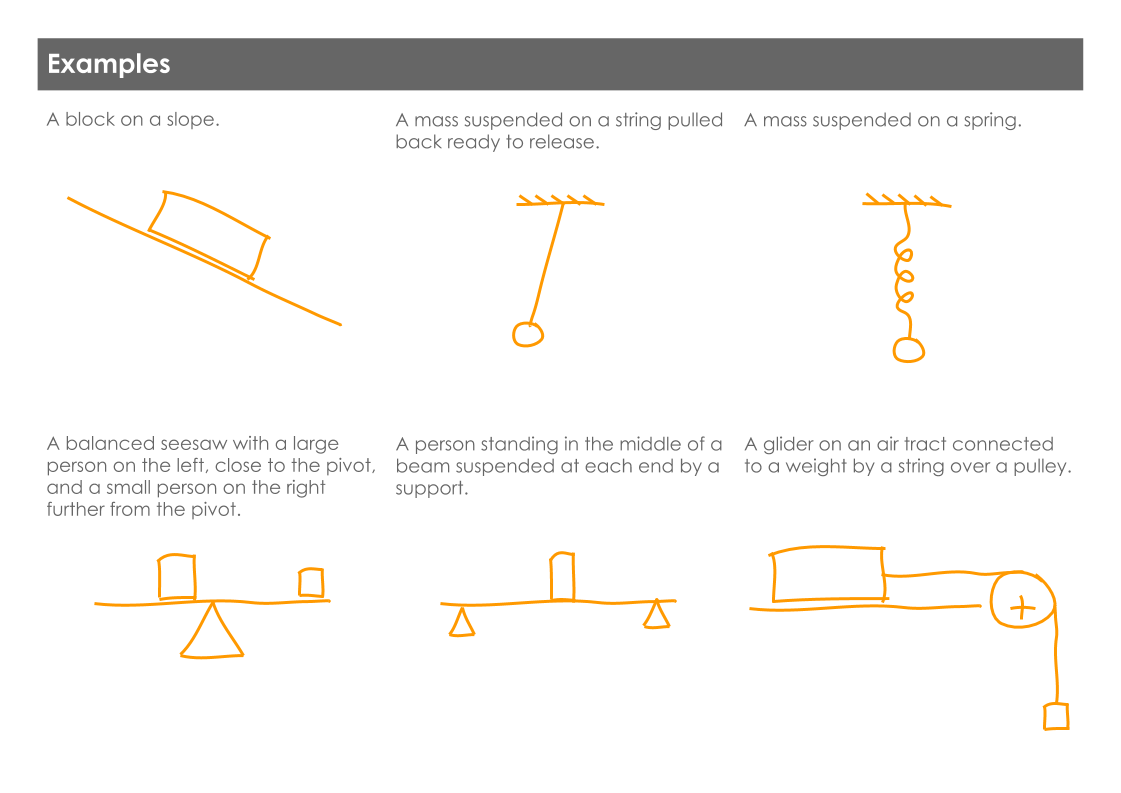

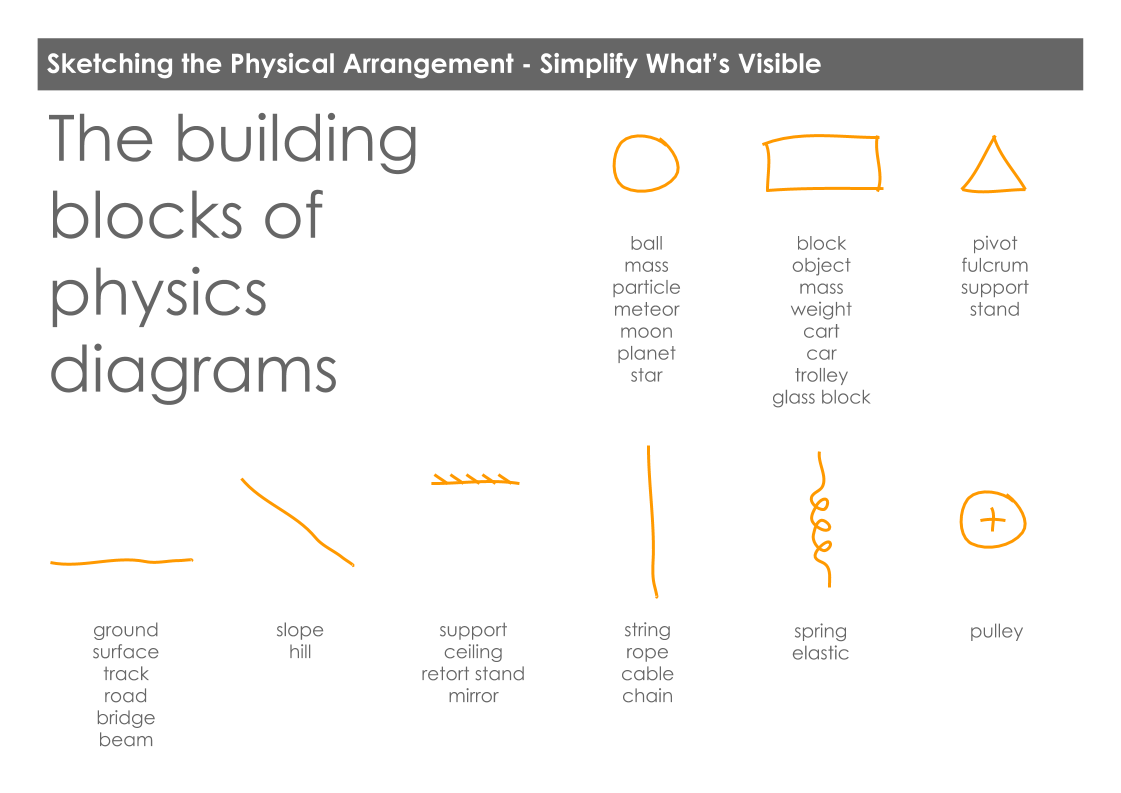

Draw Like a Physicist (4)Draw Like a Physicist (1)Draw Like a Physicist (2)Draw Like a Physicist (3)
